This guide provides a step by step guide on how to connect the LMS and WebLink APIs using Postman.



WebLink Authorization (Guest User)

For WebLink, depending on your portal configuration you may be able to access it as a Guest User.



Step 1: Retrieving a Guest User Token

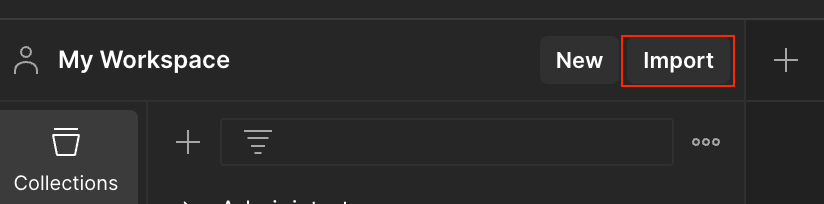

In Postman, click the Import button at the top left of the window.

In the box that pops up, copy and paste the cURL below.

curl 'https://portal-auth.administratehq.com/portal/guest' \
-X POST \
-H 'Content-Type: application/json;charset=utf-8' \
--data-raw '{"domain": "<portalBaseUrl>"}'

Click the Body tab and replace portalBaseURL with your portal and click Send. For example: "example.administrateweblink.com"

Copy the token from the response



Step 2: Use the Guest User Token

Select the Authorization tab of the request or environment where you wish to use the token.

Change the Auth Type to "Bearer Token" and paste your token into the Token field.

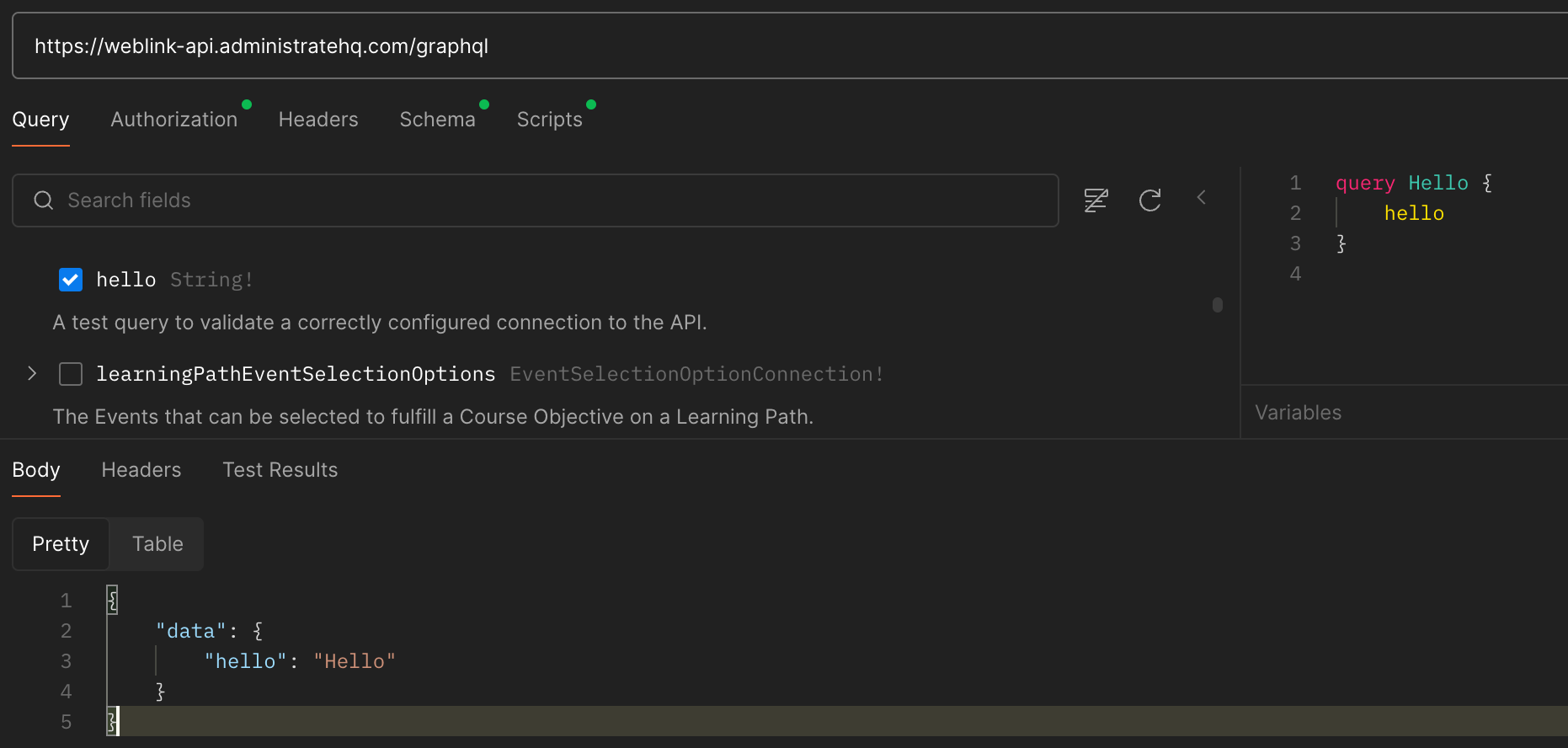

You may now access the WebLink GraphQL API as shown in the simple query below.



WebLink & LMS Authorization (Authenticated User)

Step 1: Retrieving the Portal Configuration

You will need to access the config data of the portal which can be done at:

LMS - https://your_portal.administratelms.com/config

WebLink - https://your_portal.administrateweblink.com/config

In the returned data take note of the following -

• From the idp section:

  • client_id

• brand



Step 2: Create a New Environment

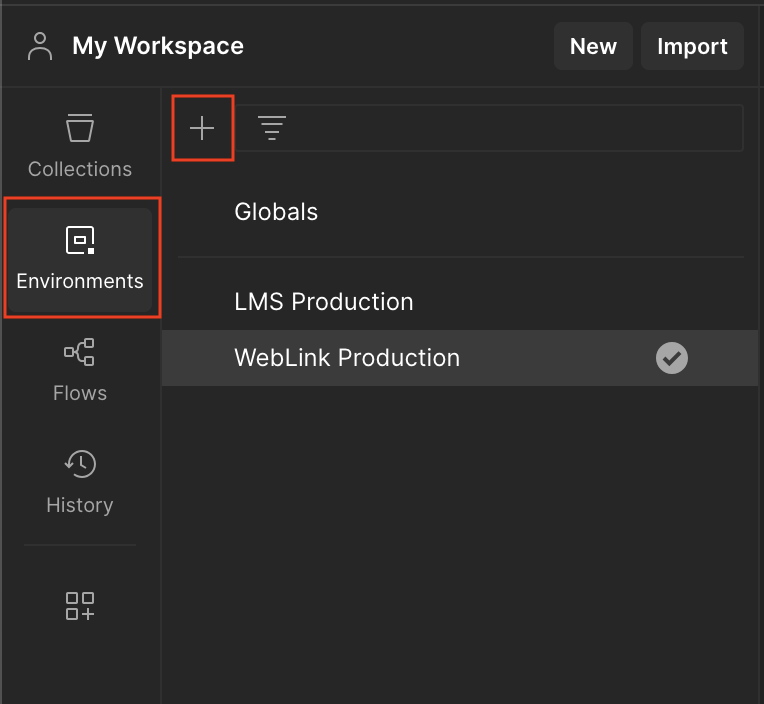

You will need to create a new Environment in Postman by selecting "Environment" -> "+" -

Add the following.

The brand with the one you got from step 1.

The client_id with the one you got from step 1.

The code_verifier with a random, unique string that you choose.

The idp_domain with getadministrate

The api_domain with administratehq

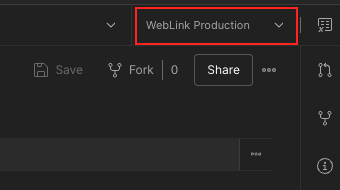

In the top right, set your new environment to be your active environment.



Step 3: Create a Collection and Authenticate

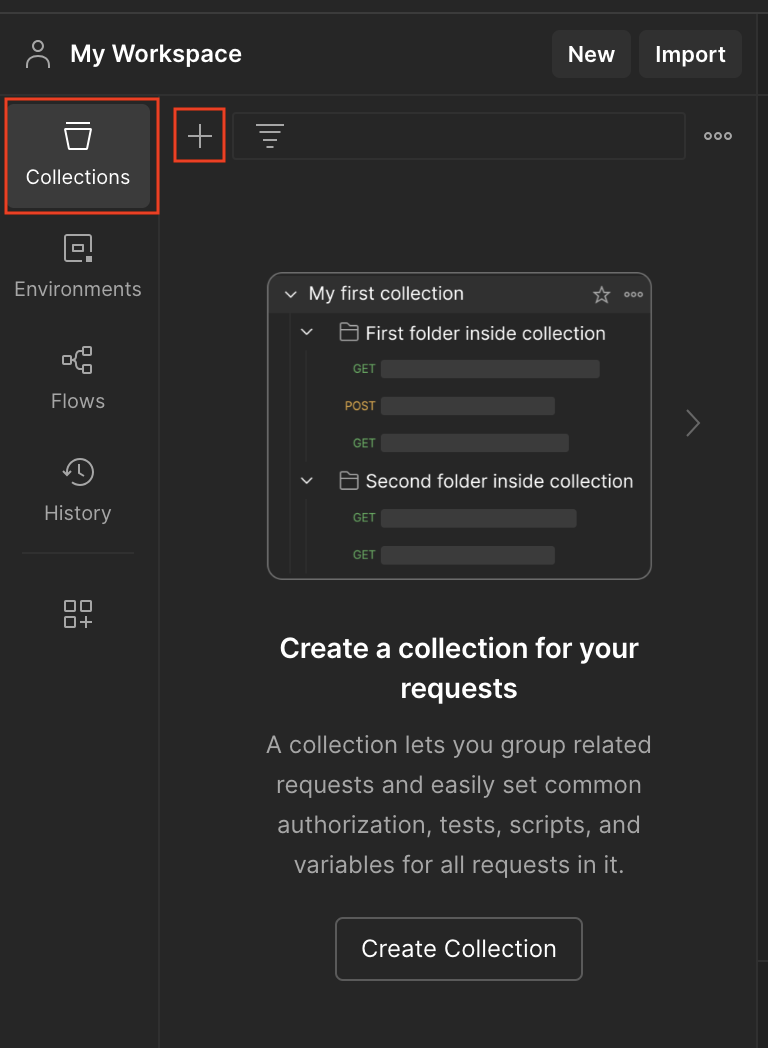

Create a new Collection by selecting "Collection" -> "+" -



Go to the "Authorisation" tab of the collection select -

Auth Type - OAuth 2.0

Add auth data to - Request Headers



Scroll down to the "Configure New Token" section and set the values -

Token Name - <What_you_want_it_named>

Grant type - Authorization Code (With PKCE)

Callback URL - https://postman-echo.com/get

Auth URL - https://identity.{{idp_domain}}.com/authorize?brand={{brand}}

Access Token URL -https://identity.{{idp_domain}}.com/token

Client ID - {{client_id}}

Client Secret -{{code_verifier}}

Code Challenge Method - SHA-256

Client Authentication - Send as Basic Auth header

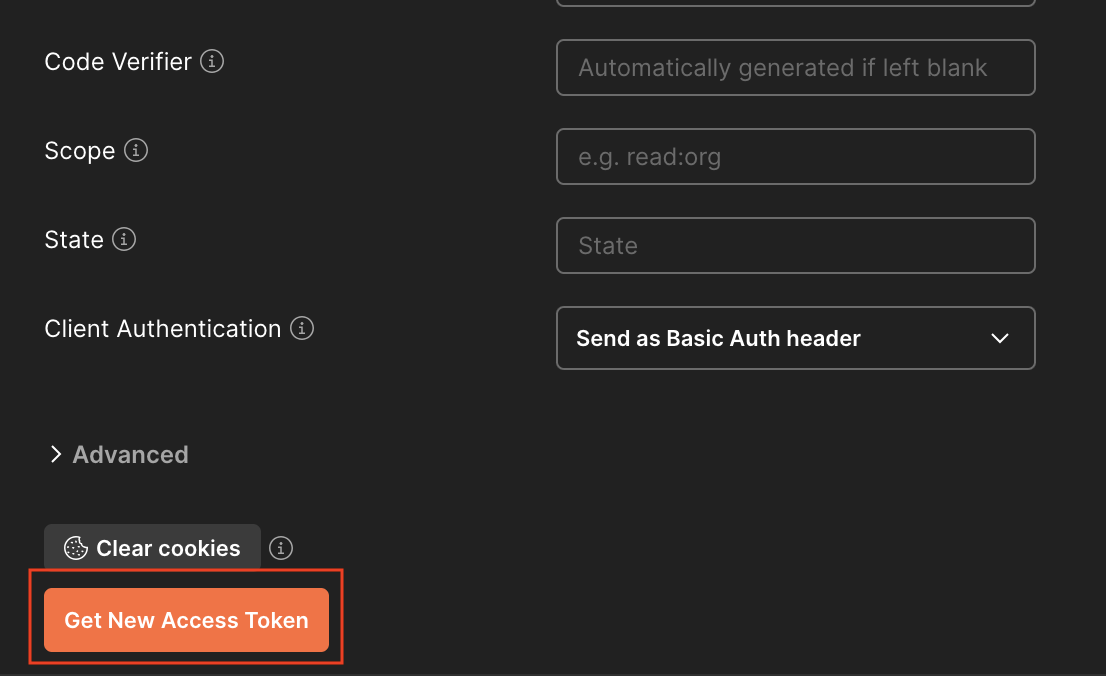

Select "Get New Access Token" -



Step 5: Logging in as an LMS user

LMS ONLY: You need a learner on that instance to log in.

Postman will display a window for you to log in as this LMS user.

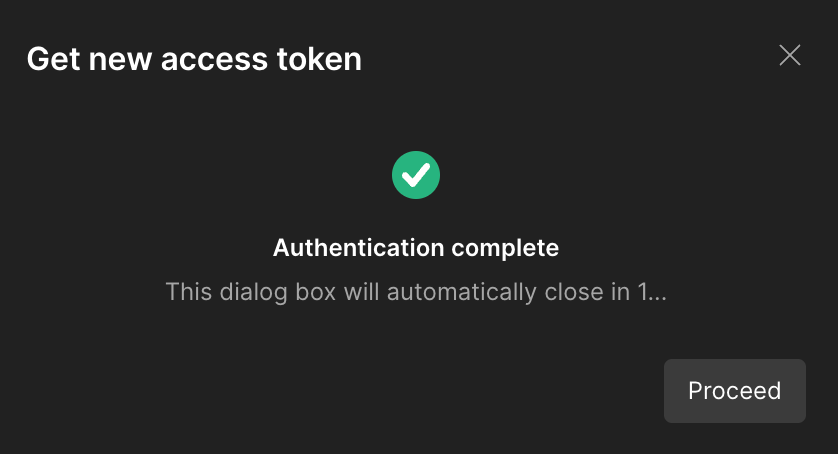

Once you log in, you should see this window.

WEBLINK ONLY: Once selecting "Get New Access Token" you will see this window.

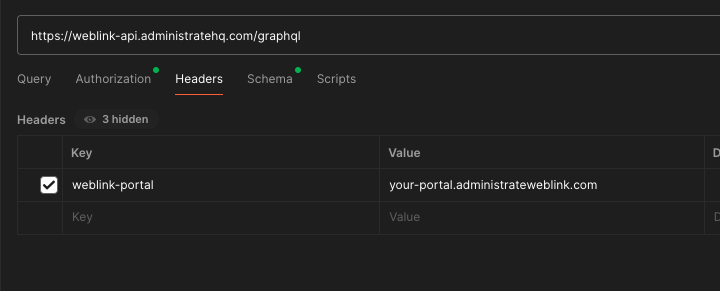

Header Required for Querying Using WebLink API

When querying the WebLink API you need to add the WebLink Portal to your Headers.

Key - weblink-portal

Value - your-portal.administrateweblink.com
